Processor | • Intel® Core™ Ultra 7 processor 265U, PBP 15W
• Intel® Core™ Ultra 7 processor 255U, PBP 15W • Intel® Core™ Ultra 5 processor 235U, PBP 15W • Intel® Core™ Ultra 5 processor 225U, PBP 15W * Only 265U/235U supports Intel® AMT |
Main Memory | • 2 × DDR5 5600 SO-DIMM, non-ECC, unbuffered, up to 96GB
|
Integrated Graphics | • Intel® Graphics |
Display Interface | • 2 × HDMI® 2.0, up to 4096x2160@60Hz
|
Storage | • 1 × M.2 Key M 2280 SSD (PCIe 3.0 × 4, SATA 3.0) |
Expansion Slot | • 1 × M.2 Key E 2230 (PCIe 3.0 ×1, USB 2.0) - Support a Wi-Fi module • 1 × M.2 Key B 3052/2242 (PCIe 3.0 × 1, USB 3.0, USB 2.0) - Support a 5G/LTE module |
I/O Interface Front | • 1 × Line out • 2 × COM port, supports RS-232/422/485 • 3 × Antenna hole |
I/O Interface Rear | • 1 × Power button with LED • 2 × HDMI® 2.0, up to 4096x2160@60Hz • 1 × 2.5GbE RJ45 port, Intel® I226 • 1 × GbE RJ45 port, Intel® I219 • 1 × USB 3.2 Gen 1x1, Type-A • 3 × USB 2.0 • DC +12V~24V power input |
I/O Interface Internal | • 2 × 6-pin header for 4 x USB 2.0 port • 4 × 9-pin header for COM port, supports RS-232 (reserved) • 1 × 10-pin header for GPIO, 4 x DI, 4 x DO • 1 × 4-pin header for 2W/4Ω speaker out • 1 × 9-pin header, supports mic in and line out • 1 × 2-pin header for reset |
Mechanical | • Dimensions : 200mm (W) x 140mm (D) x 37mm (H) w/o bracket • Net Weight : 1.26kg |
| Package Information | • Dimensions : 300mm (W) x 270mm (D) x 205mm (H)
• Gross weight : 2.54 kg (1 unit per carton) |
Power Supply | • DC 12V~24V power input |
Environment | • Operating temperature
- Ambient with air flow : -20°C~55°C (Intel® Core™ Ultra 7 processor 265U & 255U) - Ambient with air flow : -20°C~60°C (Intel® Core™ Ultra 5 processor 235U & 225U) • Storage temperature : -20°C~80°C • Relative humidity : 0%~90% (non-condensing) • Shock protection: 50G peak acceleration, 11ms according to IEC 60068-2-27 • Vibration protection - Random : 2Grms@5Hz~500Hz, IEC 60068-2-64 - Sinusoidal : 2G@5Hz~500Hz, IEC 60068-2-6 |
| Operating System | Windows 11 / Windows 10, 64bit / Linux |
| Certifications | CE (EN 50035 + EN 50032) / FCC Class A (Part 15B) / LVD (EN 62368-1) |

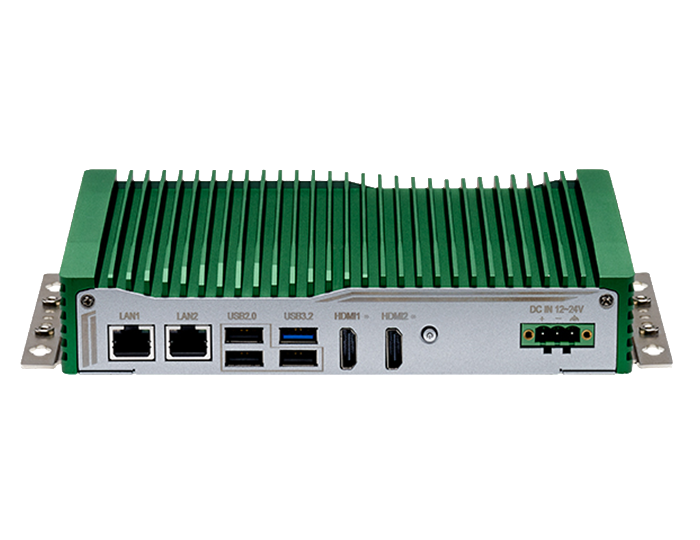

| Ordering Information | • NDiS B363-265U (P/N:10W00B36303X0) Fanless Duro Edge computer, Intel® Core™ Ultra 7 processor 265U • NDiS B363-255U (P/N:10W00B36302X0) Fanless Duro Edge computer, Intel® Core™ Ultra 7 processor 255U • NDiS B363-235U (P/N:10W00B36301X0) Fanless Duro Edge computer, Intel® Core™ Ultra 5 processor 235U • NDiS B363-225U (P/N:10W00B36300X0) Fanless Duro Edge computer, Intel® Core™ Ultra 5 processor 225U |
