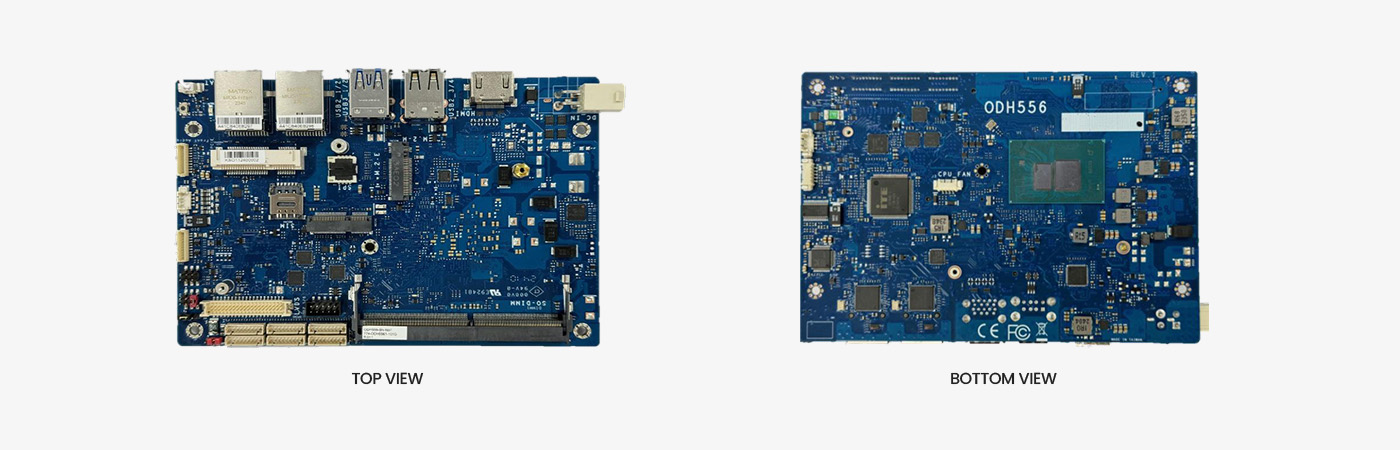

ODH556

ODH556

Features

제품특징
제품특징 이미지
  • DDR4 : 1DDR4 SO-DIMM
  • RichI/O Connectivity : 2 GbELAN, 2 USB 3.2 2 USB 2.0
  • 4K High Resolution : Supports 4K/2K resolution
  • Multiple Expansion : 1 M.2 M Key, 1 Full size mPCIe, 1 M.2 E Key
  • DualDisplay : 1HDMI,1LVDS

Application

제품 적용범위
  • 광고

    쇼핑몰, 백화점, 할인마트, 기타 상점,
    버스 정류장, 키오스크, 전기차 충전기 등

    적용범위 아이콘
  • POS

    전자메뉴판, 자판기, POS

    적용범위 아이콘
  • 이벤트

    콘서트, 전시회, 회의,
    컨벤션, 박람회 등

    적용범위 아이콘
  • 금융

    은행, 금융거래, 주식거래, ATM 등

    적용범위 아이콘
  • 엔터테인먼트

    박물관, 호텔로비, BAR,
    레스토랑, 헬스클럽 등

    적용범위 아이콘

Specification

라인업 & 상세스펙
ODH556
SYSTEM Processor • Intel® Atom x7000RE series processors (Code Name : Amston Lake)
• Intel® AtomProcessor x7433RE, 4Cores, 1.5~3.4GHz, 9W
Memory • One 260-pin SODIMM up to
• 32GB Single Channel DDR4
• 3200MHz
BIOS AMI SPI 256Mbit
GRAPHICS Controller Intel®UHDGraphics
Feature • OpenGL 4.6, Direct X 12.1, OpenCL 3.0
• HW Decode : HEVC, VP9, AV1, AVC
• HW Encode : HEVC, VP9, AVC
Display • 1 x HDMI
• 1 x LVDS		 • HDMI: resolution up to 4096x2160 @ 24Hz
• LVDS : dual channel 24-bit, resolution up to 1920x1200@60Hz
Triple Display HDMI+LVDS
EXPENSION Interface • 1 x M.2 M key 2242 (PCIe Gen3 x2 / SATA3.0)
• 1 x Full size miniPCIe slot (USB2.0, PCIe x1), 1 x SIM slot for 4G/5G
• 1 x M.2 E key 2230 (USB/PCIe x1)
AUDIO Audio Codec Realtek ALC888S
ETHERNET Controller 2 x Intel® i210AT (10/100/1000Mbps)
REARI/O Ethernet 2 x GbE (RJ-45)
USB • 2 x USB 3.2
• 2 x USB 2.0
Display 1 x HDMI
INTERNALI/O Serial • 2 x RS-232/422/485 (1.25mmpitch)
• 4 x RS-232 (1.25mmpitch)
USB 2 x USB 2.0(2.0mmpitch)
Display 1 x LVDS LCD Panel Connector
Audio • 1 x Audio (Line-out/Mic-in)
• 1 x Audio (Line-out/Mic-in)
DIO 1 x 8-bit DIO
WATCHDOG TIMER Output&
Interval		 System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY TPM dTPM2.0
POWER Type +12V DC
Connector • Right Angle Connector (4-pin)
• DC-in Jack (available upon request)
RTCBattery CR2032 Coin Cell
OS SUPPORT OS Support (UEFI Only) Windows 11 & 10 IoT Enterprise
(64-bit) Linux
ENVIRONMENT Temperature Operating : -30°C ~ 80°C Storage : -40°C ~ 85°C
Humidity Operating : 5% ~ 90% RH Storage : 5% ~ 90% RH
MTBF TBD
MECHANISM Dimensions 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
Height PCB : 1.6mm
STANDARDSAND CERTIFICATIONS Certifications CE, FCC ClassB, RoHS, UKCA
