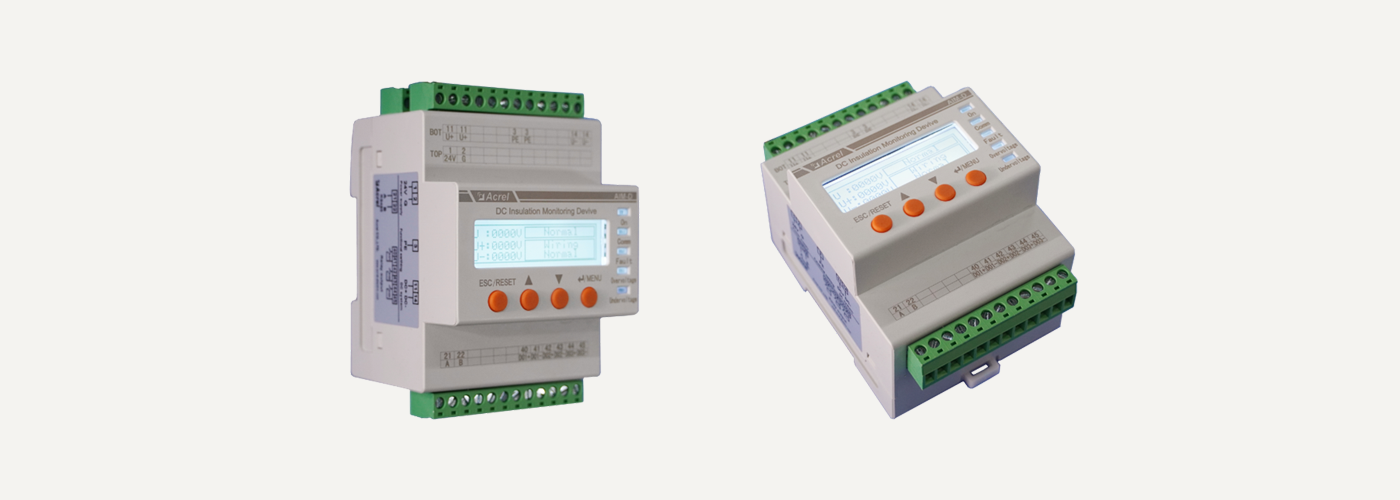

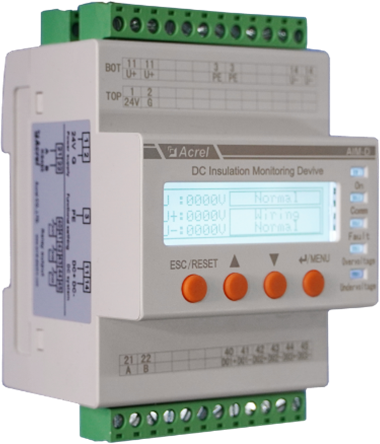

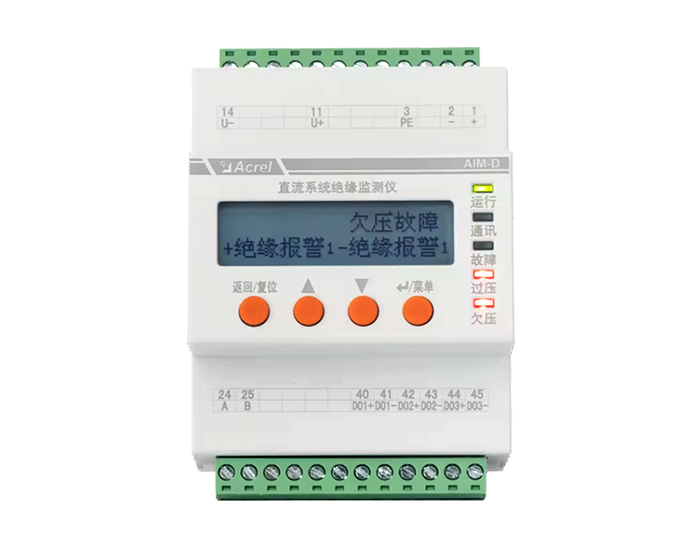

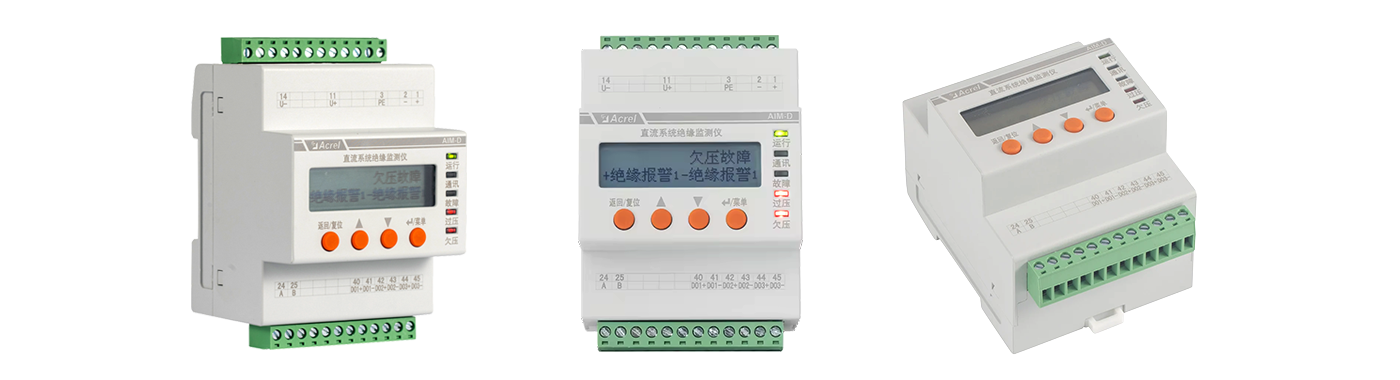

| Technical Parameter |
Technical Parameter |
| Auxiliary power |
DC 12~36V |
| Maximum power consumption |
≤3W |
| Voltage monitor |
Voltage range |
AIM-D100-TH : DC 100~1000V ;
AIM-D100-TL: DC 10~100V |
| Accuracy |
0.5 |
| Overvoltage threshold |
≥110% Rated Voltage |
| Undervoltage threshold |
≤90% Rated Voltage |
| Insulation monitoring |
Insulation resistance range |
1k Ω ~ 10M Ω |
| Warning and alarm range |
10k Ω~10M Ω |
| Accuracy |
1~10k Ω: ±1k: 10k~500k: ≤3% |
| System leakage capacitance |
≤5 μF |
| Monitoring method |
Cycle trigger : 5~500s delay can be set;
Communication trigger : read on demand |
| Insulation monitoring speed |
500ms/cycle; 1000ms/cycle |
| Internal DC impedance |
<1M Ω |
| Alarm method |
LCD, LED indicator, relay output |
| Alarm output |
3 relay outputs, N/O or N/C can be set |
| Contact capacity |
5A 250V AC; |
| 5A 30V DC |
| Fault Record |
20 fault record |
| Communication |
RS485 interface, Modbus-RTU protocol |
| Installation |
DIN-rail installation |
| Protection level |
IP30 |
| Environment |
Operating temperature |
-20~+60℃ |
| Storage temperature |
-40~+75℃ |
| Relative humidity |
<90%, without condensation |
| Altitude |
<2000m |
